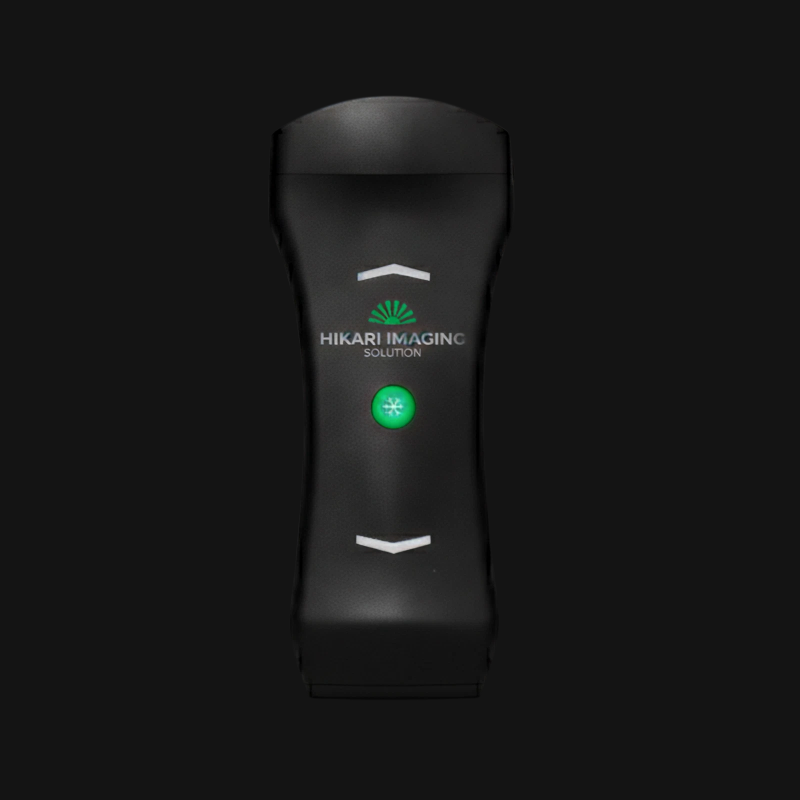

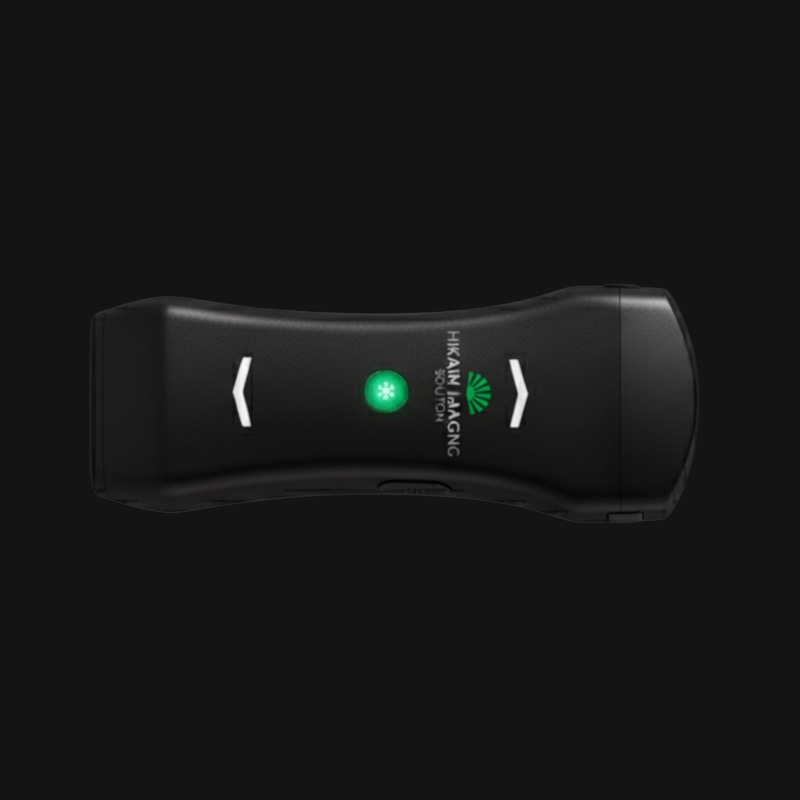

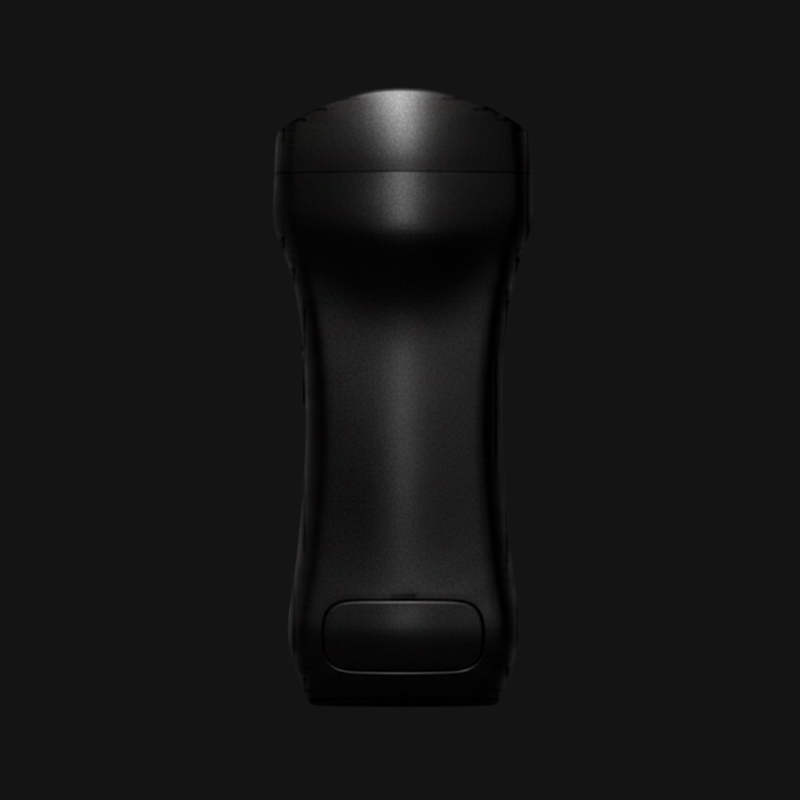

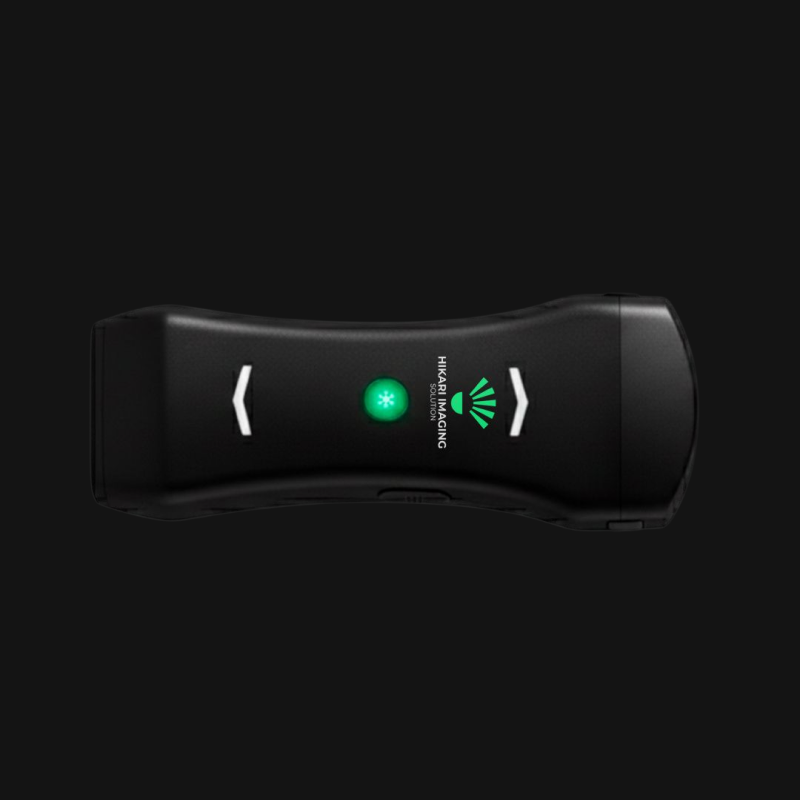

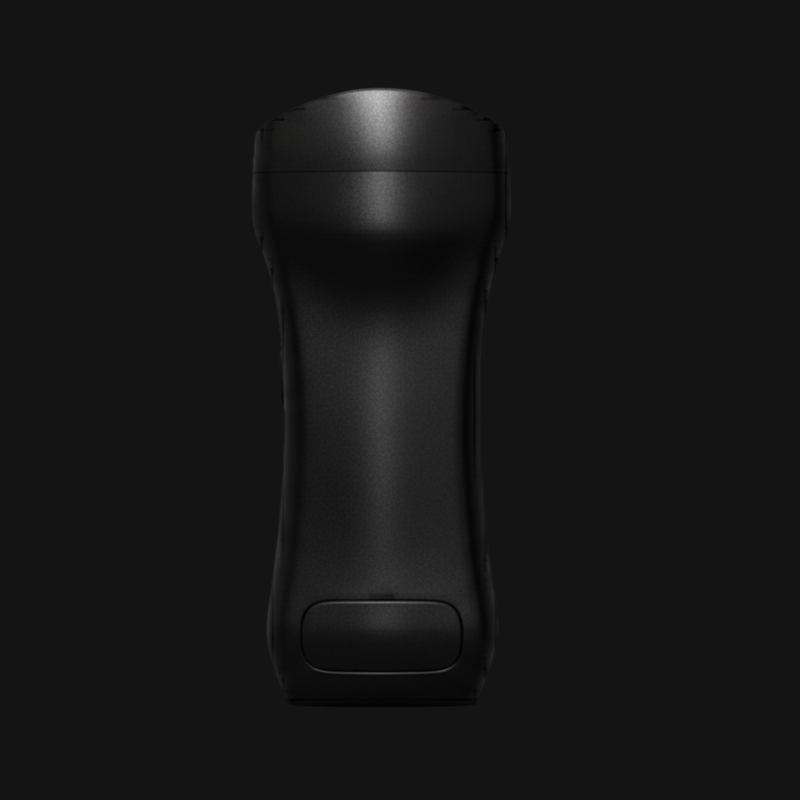

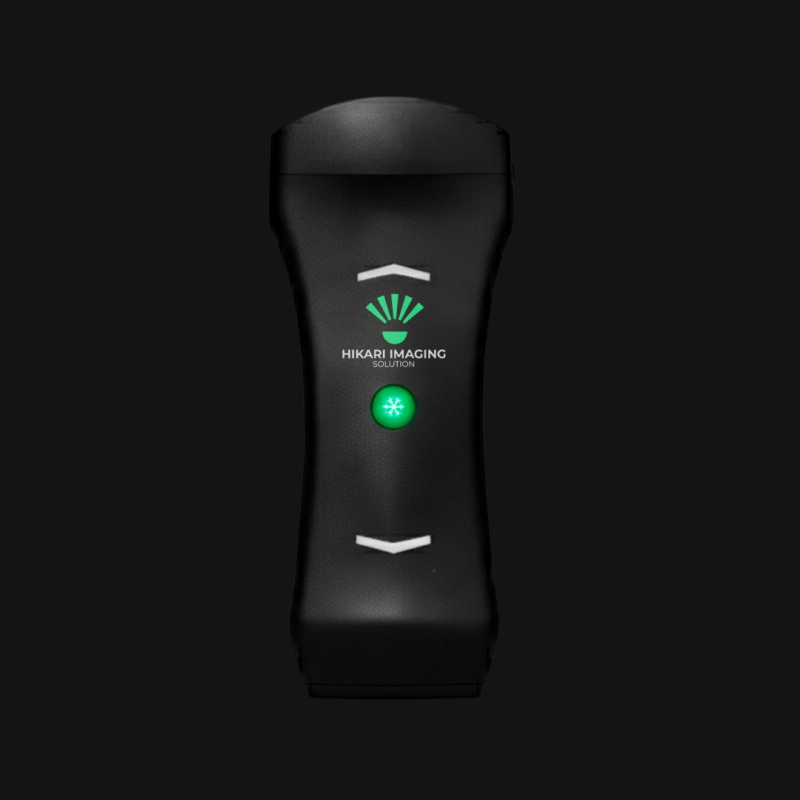

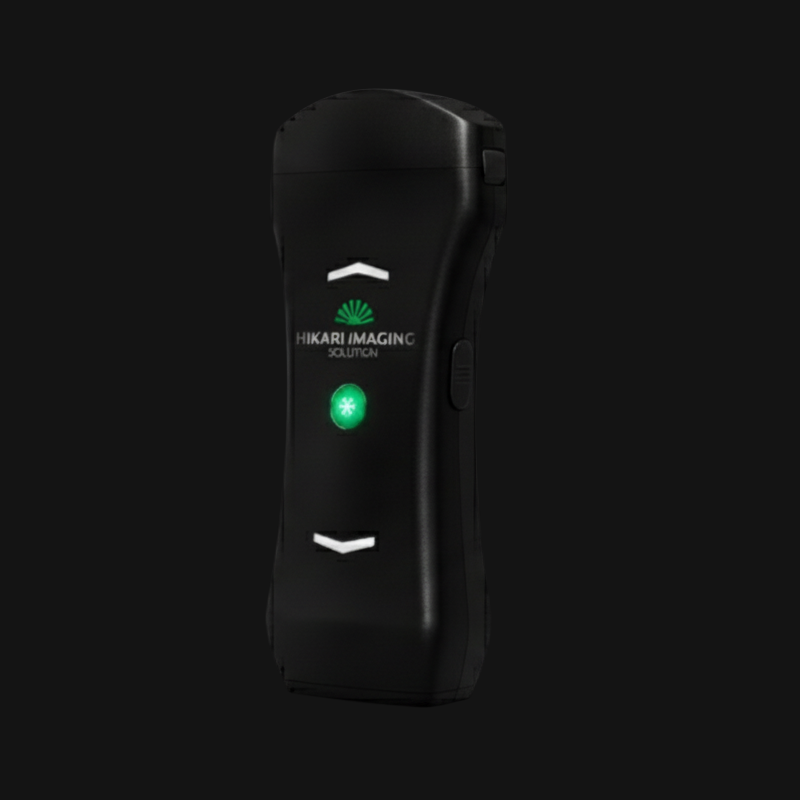

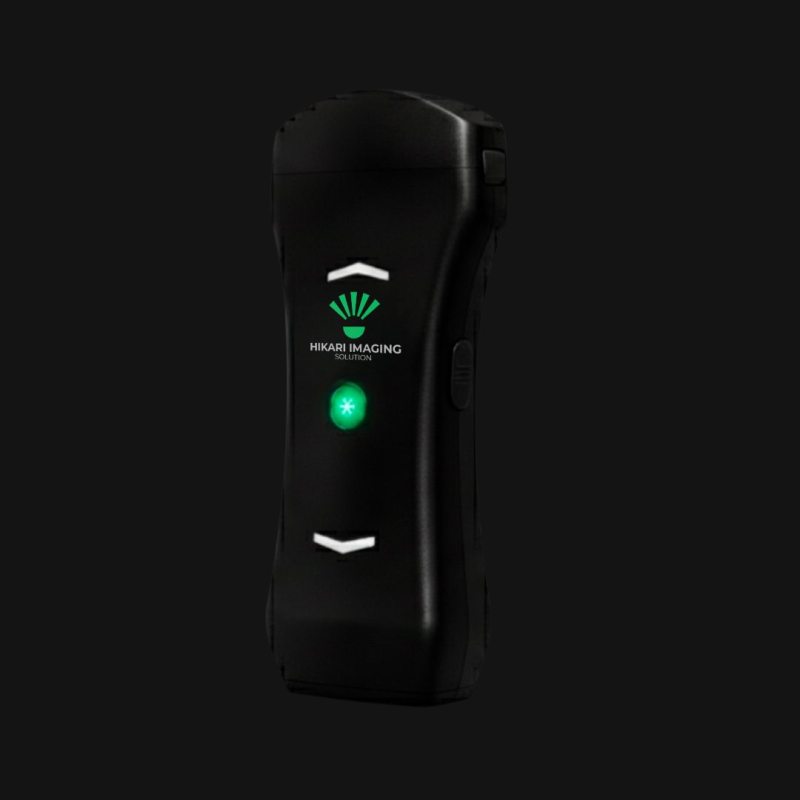

Hikari HK-3
-
Color Doppler Ultrasound Wireless Probe
The HK-3 from Hikari Imaging Solution is a compact, 220g wireless ultrasound probe. Measuring 160mm x 70mm x 30mm, it is designed for portability and ease of use in diverse clinical settings. The probe features a 128-element design and supports wireless charging.
It offers a wide range of operating modes, including B Mode, Color Flow (CF) Mode, M Mode, and Pulsed Wave (PW) Doppler. With applications spanning abdomen, cardiology, vascular, obstetrics, and gynecology, the HK-3 is a versatile diagnostic tool.
Compatible with Windows and Android devices, including PCs, notebooks, pads, and phones, the probe allows for flexible use and real-time imaging. It also provides a comprehensive suite of measurements and calculations for various specialties.
The HK-3 from Hikari Imaging Solution is a compact, 220g wireless ultrasound probe. Measuring 160mm x 70mm x 30mm, it is designed for portability and ease of use in diverse clinical settings. The probe features a 128-element design and supports wireless charging.
It offers a wide range of operating modes, including B Mode, Color Flow (CF) Mode, M Mode, and Pulsed Wave (PW) Doppler. With applications spanning abdomen, cardiology, vascular, obstetrics, and gynecology, the HK-3 is a versatile diagnostic tool.
Compatible with Windows and Android devices, including PCs, notebooks, pads, and phones, the probe allows for flexible use and real-time imaging. It also provides a comprehensive suite of measurements and calculations for various specialties.
Why choose the HK-3?
Designed for mobility and precision, the HK-3 combines high-end imaging with true portability.
Ultra-Compact Size
160 × 70 × 30 mm and only 220 g – designed for mobility.
Sharper Diagnostic Clarity
THI/iTHI, Speckle Reduction, and Spatial Compound Imaging.
Wireless Power
Built-in rechargeable battery with wireless charging.
Seamless Connectivity
Works with Windows PCs, notebooks, tablets, and Android devices.
Advanced Imaging Modes
B, M, Doppler (PW, CF, PDI, DPDI, TDI), Wide View, Needle Enhance.
Flexible data management
DICOM-ready with export to BMP, JPG, PNG, TIFF, WMV, and MP4.
One device, multiple specialties
From routine exams to specialized measurements, the Hikari HK-3 adapts seamlessly to diverse clinical needs.
Obstetrics & Gynecology
Fetal biometry (BPD, HC, AC, FL, CRL, NT, AFI, EFW), multi-gestational tracking, and uterine/ovarian volumes.
Abdominal Imaging
Liver, gallbladder, pancreas, kidneys, spleen, and vascular structures
Cardiology
Doppler tissue imaging, LA/Ao ratio, ejection fraction, cardiac output, and valve assessments
Vascular Studies
IMT, stenosis %, vessel diameters, flow analysis, and PI/RI indexes
Urology & Small Parts
Prostate, bladder, residual urine, thyroid, testis, and PSAD calculations
Musculoskeletal
Hip dysplasia analysis (Graf method) and femoral head coverage.
Clarity you can trust
With THI, iTHI, Speckle Reduction, and Spatial Compound Imaging, Hikari HK-3 delivers consistent, high-resolution images to support confident clinical decisions
Versatile Probes for Your Specialty.
Total adaptability for every clinical need. The Hikari H50 is compatible with high-precision probes that expand its diagnostic utility in multiple scenarios.
Lineal
Convex
Transvaginal
Micro-Convex
Technical Specifications
Dimensions & Weight
Dimensions
160 × 70 × 30 mm
WEIGHT
220 g
Battery & Connectivity
BATTERY
Built-in rechargeable battery with wireless charging
Connectivy
Windows PC/Notebook/Pad (with touch screen), Android Pad/Phone.
Imaging & Display Modes
Operating Modes
B, M, Anatomy M, CF, PW, PDI, DPDI, TDI, Wide View, Needle Enhance (optional)
Display modes
Live and stored display format: full size and split screen—both with thumbnails, for still and Cine.
Software & Presets
SYSTEM SETUP
Factory default preset data and user programmable preset capability.
Calculations
20+ selectable OB calculations (e.g., Hadlock, Campbell, Merz methods for GA/EFW) .
Report & Data Management
Report
On-board reporting package automates report writing (Windows devices only)
Formats
DICOM ready; exports in BMP, JPG, PNG, TIFF (image formats) and WMV, MP4 (video formats).
Advanced Measurement Packages
packages
Comprehensive software for Abdomen, Obstetrics, Gynecology, Cardiology, Vascular, Small Part, Urology, and Musculoskeletal exams.
Features
Includes Auto IMT, Real-time automatic Doppler calculations, and Fetal Graphical Trending.
